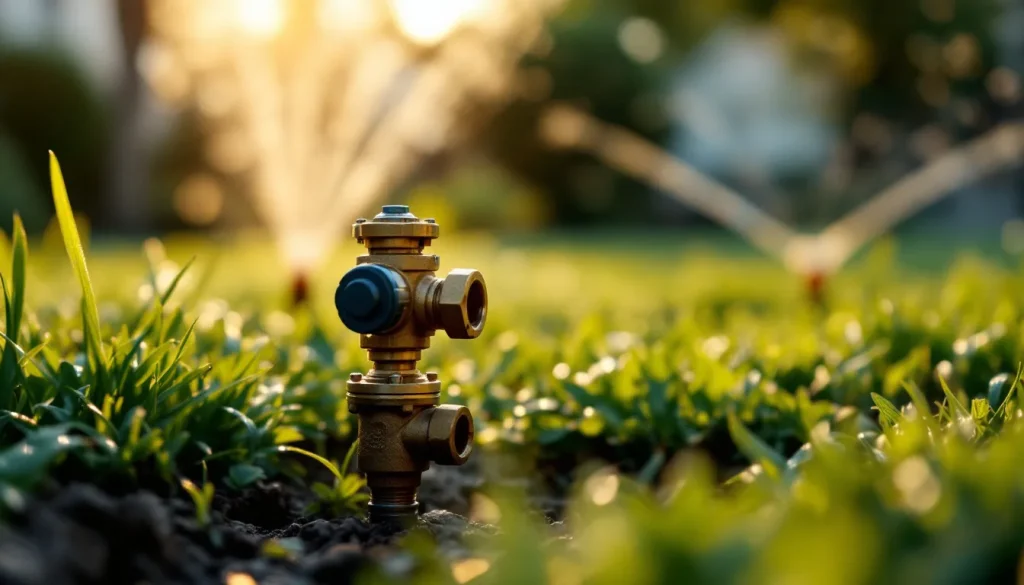

What an irrigation backflow preventer is and why it matters
An irrigation backflow preventer is a valve assembly that stops water inside your sprinkler system from reversing direction and flowing back into your home’s drinking water. It blocks lawn chemicals, fertilizer, pet waste, and stagnant pipe water from siphoning into the potable supply when pressure drops. Most US municipalities legally require one on any permanently connected in-ground system.
By HMNDP Editorial Team. Last reviewed: June 2026.
The device sits between your home’s water meter and your first sprinkler zone valve. Without it, a water-main break or firefighting drawdown nearby can create suction that pulls whatever is sitting in your irrigation lines straight back toward the tap.
The contamination risk it prevents
The core hazard is backsiphonage: a sudden negative pressure in the city main that reverses normal flow. An in-ground sprinkler system holds water that has pooled around fertilizer granules, pre-emergent herbicide, grub-control pesticide, and soil bacteria. A backflow event can draw that mixture into the same pipes your family drinks from.
The US EPA classifies lawn irrigation as a health hazard cross-connection because of these chemicals. That classification is why plumbing codes treat sprinkler systems more strictly than, for example, an outdoor hose used only for washing a car.
If you inject fertilizer through the system (a practice called fertigation), the hazard rating rises further and dictates a higher-grade device, covered below.
The five backflow preventer types compared
Five device families cover residential irrigation: the pressure vacuum breaker (PVB), atmospheric vacuum breaker (AVB), double check valve (DCV), reduced pressure zone (RPZ), and hose-bib anti-siphon vacuum breaker. They differ in protection level, install height, whether they hold pressure continuously, and whether a certified tester can test them.
| Type | Protection | Install rule | Holds constant pressure? | Testable? | Best for |
|---|---|---|---|---|---|
| PVB (pressure vacuum breaker) | Backsiphonage only | 12 in. above highest head | Yes | Yes | Most standard residential in-ground systems |
| RPZ (reduced pressure zone) | Highest, health-hazard rated | 12 in. above grade, discharges water | Yes | Yes | Fertigation or chemical-injection systems |
| DCV (double check valve) | Non-health-hazard, both directions | Can sit below grade in a box | Yes | Yes | Freeze-prone regions, buried installs |
| AVB (atmospheric vacuum breaker) | Backsiphonage only | 6 in. above highest head, one per zone | No (12 hr max) | No | Simple single-zone or manual setups |
| Hose-bib anti-siphon | Backsiphonage only | Screws onto the spigot | No | No | Hose-fed drip or portable systems |
How to choose the right type: a hazard-based framework
Pick your type by three questions, in order: What does local code require, does your system inject chemicals, and does freezing threaten an aboveground device? Answer those and one option usually stands out. Never choose on price alone, because an underrated device can fail code inspection and the mandatory annual test.
- Does your system inject fertilizer or chemicals? If yes, code almost always mandates an RPZ, the only common residential device rated for a health hazard under continuous pressure.
- Standard in-ground system, no injection? A PVB is the default choice in most jurisdictions. It handles constant pressure, is testable, and costs less than an RPZ.
- Hard freezes and you want the device buried below the frost line? A DCV can be installed below grade in a valve box, unlike a PVB or RPZ, which must sit above ground.
- Simple, low-hazard, non-pressurized zone? An AVB or hose-bib vacuum breaker can suffice, but many codes no longer accept them for permanent in-ground systems.
Confirm the choice with your water utility or building department before buying. Some cities publish an approved-device list and reject anything not on it, even if the part is technically higher grade.
Product specs to check before you buy
For a residential system, the common specification is a lead-free brass body, either 3/4-inch or 1-inch inlet, rated to roughly 150 psi working pressure, and certified to the relevant ASSE standard. Brass resists corrosion and freeze cracking better than plastic, and a repair kit availability check saves money later.
- Size: Match the device to your mainline, commonly 1 inch for a whole-house residential system feeding four to eight zones.
- Body material: Lead-free brass (required under the US Safe Drinking Water Act for potable connections).
- Pressure rating: Up to about 150 psi; confirm your static pressure sits below this.
- Certification: Look for UPC listing plus the correct ASSE standard: ASSE 1020 (PVB), ASSE 1013 (RPZ), and ASSE 1015 (DCV).
- Repair kit: Named models like the Febco 765 PVB, Watts 800M4, and Zurn Wilkins 720A have widely stocked rebuild kits (poppet, springs, seals) so a failed test does not mean a full replacement.
Where the device installs and how high above the ground
The backflow preventer installs on the irrigation mainline, downstream of the water meter and the main isolation valve, and upstream of the first zone control valve. A PVB or RPZ must sit at least 12 inches above the highest sprinkler head anywhere in the system, so it can vent air and break siphon reliably.
Two details cause most failed inspections. First, flow direction: the assembly carries an arrow, and installing it backward defeats the protection entirely. Second, that 12-inch rule references the highest head, not the device location, so a sloped yard with an uphill head forces the preventer higher.
Picture the layout as a straight line: meter, shutoff valve, backflow preventer standing above grade, then the buried manifold of zone valves feeding each sprinkler head. If you are burying manifold lines or regrading a bed around the assembly, our note on how much soil you need to backfill helps you plan the trench.
DIY is realistic for a handy homeowner replacing a like-for-like device, but many jurisdictions require a plumbing permit and, for a new install, a licensed plumber. Check before you cut into the main. For broader context on layout and components, see our in-ground irrigation system guide.
Do you actually need one, and the annual testing rule no product page mentions
If your sprinkler system connects permanently to a municipal potable supply, you almost certainly need a backflow preventer by law, and in most jurisdictions you also need it tested every year by a certified tester. This annual certification is the part product listings ignore, and skipping it can trigger fines or water shutoff.
Testing is not optional in most cities. A licensed or certified backflow assembly tester (often a plumber with a state or AWWA credential) attaches a gauge to the test cocks, verifies the check valves and relief valve hold, and files a passing report with your water authority. AVBs and hose-bib breakers cannot be tested, which is one reason codes increasingly require testable PVB, DCV, or RPZ devices.
Typical annual test cost runs about 50 to 150 US dollars depending on region. A full professional installation of a new assembly, including permit and fittings, commonly lands between 150 and 500 dollars, on top of the device itself. Budget for both when you plan a system; our breakdown of overall irrigation system cost puts these figures in context.
Winterizing your backflow preventer to prevent freeze failure
Freeze damage is the single most common reason a homeowner backflow preventer fails, because trapped water expands and cracks the brass body or shatters the internal poppet. In any climate with hard frost, you must drain and protect the aboveground assembly before the first freeze, then have it retested in spring if it cracked.
- Shut off the isolation valve upstream of the device.
- Open both test cocks and the downstream valve to drain trapped water; leave the test cocks at a 45-degree angle so no water pools inside.
- Blow out the zone lines with compressed air at a safe pressure (typically under 50 psi for the mainline) if your system requires it.
- Insulate the exposed assembly with an insulated pouch or foam cover, or remove a bagged assembly entirely in the harshest zones.
Never wrap a preventer so tightly that it cannot drain or vent. Trapped moisture inside sealed insulation can still freeze. The same drain-down logic protects drip irrigation setups that tee off the same mainline.
Where to buy an irrigation backflow preventer
You can buy irrigation backflow preventers at Home Depot and Lowe’s in store, on Amazon, and through irrigation specialists like SprinklerWarehouse, SupplyHouse, and Ferguson. Specialist retailers stock a wider range of certified brass PVB, DCV, and RPZ models plus matching repair kits, while big-box stores cover the common 3/4-inch and 1-inch homeowner sizes.
Before you order, confirm your city’s approved-device list and the required ASSE certification. A part that is cheaper online but not on the local list wastes both the purchase and the test-and-inspection fee.
Frequently Asked Questions
Do I need a backflow preventer on my irrigation system?
Almost certainly yes. If your in-ground sprinkler system connects permanently to a municipal drinking-water supply, nearly every US plumbing code requires a backflow preventer because lawn chemicals classify irrigation as a health hazard. Requirements vary by state and city, so confirm with your local water utility or building department, which may also mandate a specific approved device and annual testing.
What type of backflow preventer do I need, PVB, RPZ, or double check?
For a standard in-ground system with no chemical injection, a pressure vacuum breaker (PVB) is the usual code-approved choice. If you inject fertilizer through the system, most codes require a reduced pressure zone (RPZ), the highest-protection device. A double check valve (DCV) suits freeze-prone regions because it can be buried below grade, unlike a PVB or RPZ.
How much does it cost to install an irrigation backflow preventer?
The device itself commonly costs 40 to 300 US dollars depending on type and size, with a 1-inch brass PVB near 80 to 150 dollars and an RPZ higher. Professional installation, including permit and fittings, typically adds 150 to 500 dollars. Budget separately for the mandatory annual test, which usually runs about 50 to 150 dollars in most regions.
Where should the backflow preventer be installed, and how high?
Install it on the irrigation mainline, downstream of the water meter and main shutoff and upstream of the first zone valve. A PVB or RPZ must sit at least 12 inches above the highest sprinkler head anywhere in the system so it can break siphon properly. Follow the flow-direction arrow on the body; installing it backward removes all protection.
Does an irrigation backflow preventer need to be tested every year, and who tests it?
In most US jurisdictions, yes. Testable devices like PVBs, DCVs, and RPZs require annual certification by a licensed or certified backflow assembly tester, often a plumber holding a state or AWWA credential. The tester gauges the test cocks, verifies the valves hold, and files a passing report with your water authority. Skipping it can trigger fines or water shutoff.
How do I winterize and protect my backflow preventer from freezing?
Shut off the upstream isolation valve, then open both test cocks and the downstream valve to drain all trapped water, leaving the test cocks at a 45-degree angle. Blow out the zone lines if your system needs it, then insulate the aboveground assembly with a foam cover, or remove it in severe climates. Freeze damage that cracks the brass body is the top cause of homeowner backflow failure.
Can I install a sprinkler backflow preventer myself, or do I need a licensed plumber?
A handy homeowner can often replace a like-for-like device, but many jurisdictions require a plumbing permit and, for a brand-new connection, a licensed plumber. Cutting into the potable main carries contamination and code risk, and a failed inspection or test means redoing the work. Check your local building department rules before buying parts or opening the line.
What size backflow preventer do I need for my irrigation system?
Match the device to your irrigation mainline diameter. Most residential systems feeding four to eight zones use a 1-inch preventer, while smaller single-zone or low-flow setups may use 3/4 inch. Undersizing restricts flow and drops sprinkler pressure; oversizing wastes money. Check the pipe size at your zone manifold, and confirm the device is rated near 150 psi for typical home pressure.
